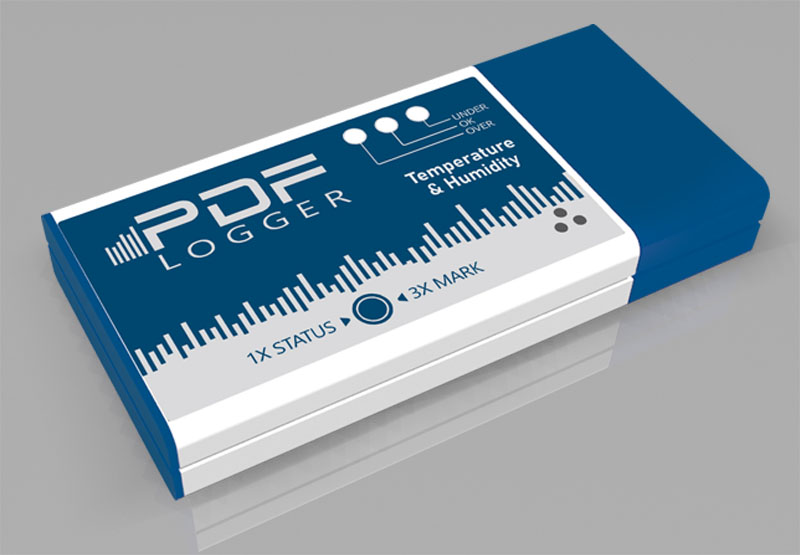

PDF LOGGER - Disposable PDF Temperature Humidity Datalogger

Custom engineered for high precision and on time data logging for temperature and humiditty sensitive goods in every cold chain implementation

Measures ambient temperature and moistness with high precision on time with built in sensors.

Customisable temperature and moistureness alarm and record period can be set before recording as required by user.

Its quite easy to use with tear off and run feature and built in usb input.

PDF reporting without any additional software, they generates comprehensive PDF file after log process finished. You can view PDF report after connected to a USB port.

You may send PDF files to our servers by clicking “send to Web” button if necessary and share it with different users.

Ease of Use

It is extremely easy to start the registration process and report the Recording.

Cloud storage

All device data can be stored by users in a cloud Environment.

CalIbratIon CertIfIcate

Each device is equipped with a special calibration certificate and can be downloaded via the System.

HIgh SecurIty

The data inside the device cannot be changed externally.

CustomIzable

Alarm and recording intervals can be changed by the User.

Advanced reportIng

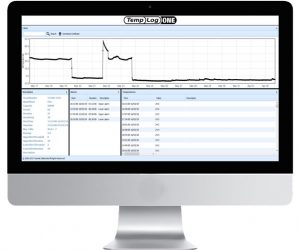

PDF, Excel, Graphical and Table format can be used for reporting in desired date range.

GENERAL SPECIFICATIONS

Model: PDF LOGGER +TH
Temperature Range:-20 to +60°C
Temperature Precision: ±0.1°C
Temperature Resolution: ±0.5°C
Humidity Range: 0 - 100%Rh
Humidity precision: ±1 %Rh
Humidity resulotion: 1 %Rh
Reporting type:PDF and AnalysIs software
Memory space: 5000 Temperature / 5000 Humidity
Alarm indication light: Yes( May set by user )
End of transportation marker:Yes
Upload to Web: Yes
Logging Period: 3-5-7-10-15-20-30-45-60-90
Shelf life: 12 months

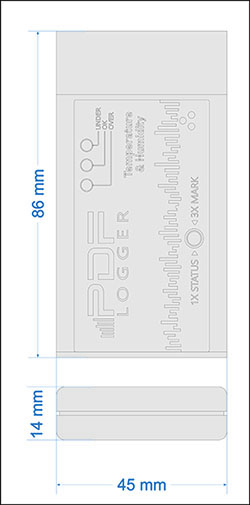

Dimensions: 45mm X 86mm X 14mm
Weight: 40gr.

Example PDF  Analysis Software  Guide
