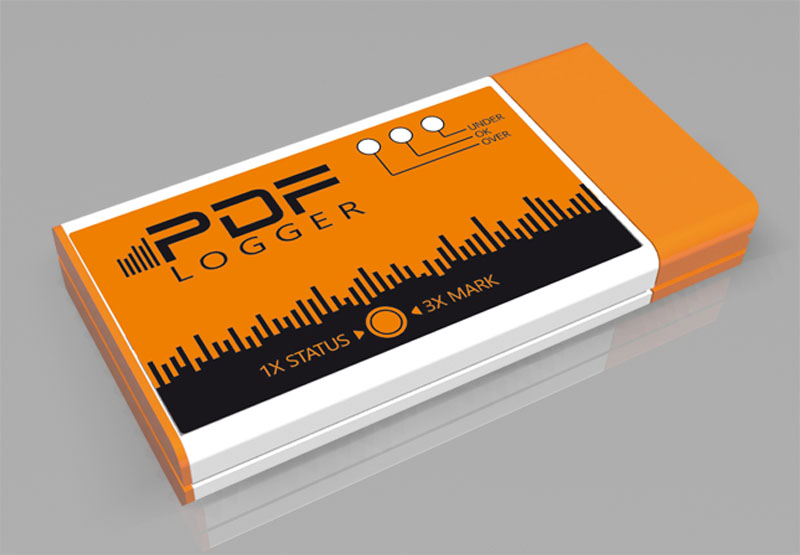

PDF LOGGER Disposable PDF Temperature Datalogger

PDF LOGGER is a preprogrammed pdf ambient temperature logger

It is specifically produced to log temperature measurement during the distribution of temperature sensitive products like fresh vegetable, fruit, sea food, meat and medicine.

It logs the ambient temperature through internal sensor at correct time and accurate precision.

Customisable temperature alarm and record period may set before recording as required by user.

Its quite easy to use with tear off and run feature and built in usb input.

Renders PDF report immedietely without any additional program just by install device to USB port.

You may send PDF files to our servers by clicking “send to Web” button if necessary and share it with different users.

Ease of Use

It is extremely easy to start the registration process and report the Recording.

Cloud storage

All device data can be stored by users in a cloud Environment.

CalIbratIon CertIfIcate

Each device is equipped with a special calibration certificate and can be downloaded via the System.

HIgh SecurIty

The data inside the device cannot be changed externally.

CustomIzable

Alarm and recording intervals can be changed by the User.

Advanced reportIng

PDF, Excel, Graphical and Table format can be used for reporting in desired date range.

GENERAL SPECIFICATIONS

Model: PDF LOGGER +T
Temperature Range: : -20 to +60°C Ops. -30 to +85°C
Temperature Precision: ±0.1°C
Temperature Resolution: ±0.5°C
Reporting type:PDF and AnalysIs software
Memory space: 5000 Measurements
Alarm indication light: Yes( May set by user )
End of transportation marker:Yes
Upload to Web: Yes
Logging Period: 3-5-7-10-15-20-30-45-60-90
Shelf life: 12 months
Dimensions: 45mm X 86mm X 14mm
Weight: 40gr.

Example PDF  Analysis Software  Guide
